Research Field
전자세라믹스
기존의 전통적인 세라믹 재료에서 벗어나, 세라믹 재료가 가지는 강력한 내식성, 내열성
및 내마모성을 유지하며,각종 전자 기기에 필요한 전기적 특성을 나타내는 물질로서
정보 시대의 필수요소로 자리매김 하고 있다.
- Piezoelectric Ceramics Material Design and Their Applications
- Piezoelectric / Dielectric Thin films
- New Generation Memories (ReRAM) and Neuromorphic Device
- ZnS Nanoparticle and Ceramics for Infrared Lens Application
- Others
Piezoelectric Ceramics Material Design and Their Applications
1Lead-based Piezoelectric Ceramics
-
Various PZT-relaxor compositions
High energy transduction properties for energy harvester and sensors
High strain properties for actuators
Low temperature sintering technic
Suitable for mass production
Templated grain growth proccess for future technology
2Lead-Free Piezoelectric Ceramics
-
Various NKN-based compositions
Innoxuous and eco-friendly material
High piezoelectric charge constant for sensors
High strain properties for actuators
For replacing lead-based ceramics

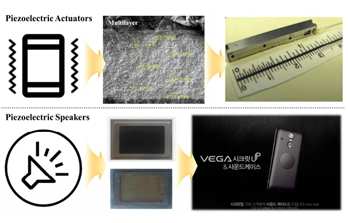

3Application : Piezoelectric Actuator
-
Multilayer processing technic with high strain materials
Development of haptic actuators and piezoelectric speakers
Know-how of industrialization for haptic actuators and piezoelectric speakers
4Application : Piezoelectric Energy Harvester
-
Energy harvest from wasted mechanical vibrations
Harvester designing and fabricating technic with high energytransducting materials
Development of knock sensor with lead-free ceramics
Piezoelectric / Dielectric Thin films
1Synthesis of the inorganic nanosheets
-
Various Dion-Jacobson layered perovskite structure
Easily exfoliation using soft-chemical method
Large aspect ratio
Various thickness of the nanosheets (0.3 ~ 2.5nm)
2Application : Dielectric properties
-
Deposition method using polarity of nanosheets
Applied to various shapes of substrates
Fast deposition time
Good crystallinty
3Langmuir-Blodgett process for ultra-thin film
-
Powerful process for making ultra-thin film
Various thickness can be adjusted according to the number of layers to be stacked
High crystalline such as single crystal
Good dielectric properties for MLCC and FET
4Piezoelectric Thin films using 2-D inorganic nanosheets seed-layer
-
Various nanosheets seed layer available
Adjustable crystal direction according to seed direction
Low-temperature process (~350oC)
Apply to polymer substrate
High piezoelectric strain constan
New Generation Memories (ReRAM) and Neuromorphic Device
1Oxide Thin Film Memristor for ReRAM
-
Deposition of various oxide materials
Fine resistive switching properties with a ON/OFF ratio of 103
Reliable retention & endurance properties
Filament model with oxygen vacancy presented as a resistance switching mechanism
2Self-powered ReRAM with Nanogenerator
-
Self-powered ReRAM driven by nanogenerator trying to use same material
Enough output voltage of nanogenerator to drive ReRAM device (> ±1V)
Reliable retention & endurance properties
3Neuromorphic Characteristic for Artificial Synapse
-
Memristor mimicking biological synapse
Multi-level characteristic of ReRAM memristor
Analog memory characteristic with consecutive DC bias & AC pulses
Change of synaptic weight & decay time with various numbers of spikes
Change of synaptic weight with frequency of spikes
Change of synaptic weight with timeing of arbitrary pulses mimicking biological spikes
ZnS Nanoparticle and Ceramics for Infrared Lens Application
1ZnS materials
-
wide band gap II-VI semiconductor
Cubic sphalerite structure (< 1020 °C)/hexagonal wurtzite(~ 1020 °C) structure
High transparency at the infrared wavelengths
High density / toughness
2ZnS nanopowder with Hydrothermal method
-
Low temperature synthesis
Easily synthesized ZnS nanopowders with hydrothermal method
Control the ZnS nanopowder shape and grain size depend on S/Zn ratio
3ZnS Ceramics for infrared-ray application
-
Homogeneous cubic phase
ZnS ceramics with yellowish-brown color and transparent at visible range
Large grain size / high density (>99%)
High transmittance (>70%, 6 ~ 12um, T: 3mm)
Application for the IR-thermal camera / Night vision / military service
Others
1Structural properties of Al2O3 for LTCC
-
XRD patterns of Al2O3 + CuO, TiO2 with different sintering conditions and various amount of sintering aids
All of XRD patterns show Al2O3 phase without any secondary phases
SEM image of bar-type Al2O3 with respect to the amount of CuO, TiO2 sintering aids
High strength and thermal conductivity due to large grain sizes without unnecessary phase
2Strength and Thermal conductivity of Al2O3 for LTCC
-
Density enhancement by sintering aids
3-Point bending strength of Al2O3 with respect to sintering aids contents and sintering conditions
Thermal conductivity of Al2O3 with respect to sintering aids contents and sintering conditions
